FlashAngio caIMR System

Coronary Artery Functional Analysis System

产品描述




Coronary Artery Functional Analysis System



——



Model: FMC21a



Introduction: This Product provides auxiliary diagnosis of coronary artery disease. It is intended to assess Coronary Angiography Fractional Flow Reserve (caFFR) and Coronary Angiography Index of Microcirculatory Resistance (caIMR) in coronary artery stenosis by conducting vascular segmentation and three-dimensional reconstruction on coronary angiography images (conforming with DICOM3.0 standard) and hemodynamic analysis combing with the aortic pressure measured by disposable blood pressure transducer. Studies have confirmed that the combination of FFR and IMR can provide a complete functional evaluation of blood vessels from epicardial coronary arteries to intramyocardial microcirculation. caFFR and caIMR are currently used individually for the precise diagnosis of coronary artery disease and are subsequently expected to be central and key modules of our future panvascular interventional robots.



Application Scope: It is only used by qualified medical technicians specially
trained by the manufacturer for the clinical diagnosis and treatment of adult
patients with coronary heart disease.

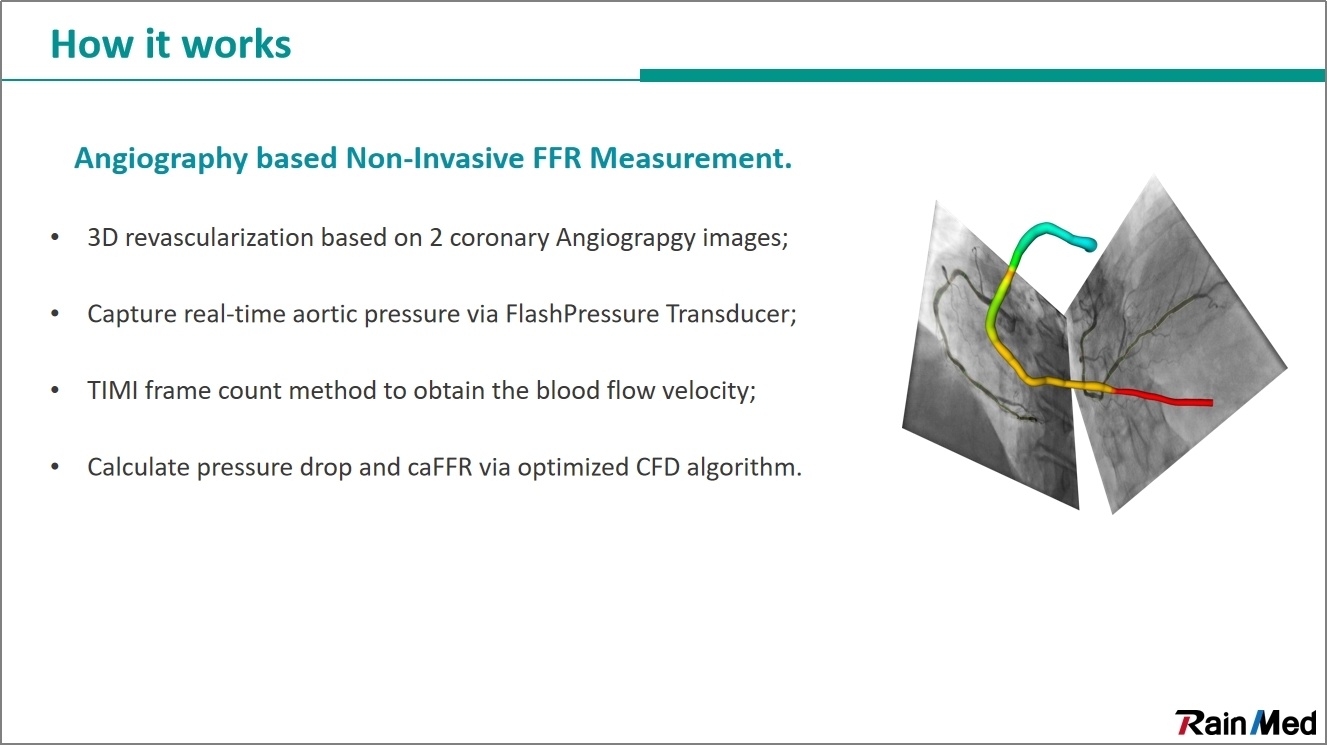

System Principle:








Product Advantages:






Product Parameter:



Electrical classification

Class, Type CF, Continuous operation

Power

Voltage :100~240VAC

Frequency :50/60Hz±1Hz

Power250VA



IP rating

IPX0

Pressure range

-30 to 300mmHg

Accuracy

±4mmHg or ±4%, whichever is larger



Frequency response

0-10Hz

Resolution

1mmHg

Working environment

Ambient temperature15°C to 30°C

Relative humidity45% to 75% non-condensing

Atmospheric pressure80kPa to 106kPa

Transport environment

Ambient temperature-20°C to +55°C

Relative humidity15% to 80% non-condensing, free of corrosive gas

Atmospheric pressure50kPa to 106kPa

Storage environment

Ambient temperature-20℃ to +55℃

Relative humidity≤93% non-condensing, free of corrosive gases, well ventilated

Atmospheric pressure50kPa to 106kPa





For product manuals, please contact market@rainmed.com.
